Wear Resistant And Scratch Resistant Orange Car Paint Topcoat Acrylic Aotu Coat For Automotive Repair
Product Details:
| Place of Origin: | China |
| Brand Name: | CarCharm |
| Certification: | ISO,MSDS,SGS |
| Model Number: | 135 |
| Document: | Color card.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200L |
|---|---|
| Price: | 2.73USD/L-5.56USD/L |
| Packaging Details: | Box/Carton |
| Delivery Time: | 10-15 Work Day |
| Payment Terms: | T/T |
| Supply Ability: | 5000L per day |
|
Detail Information |
|||
| Name: | Orange Red | Code: | 135 |
|---|---|---|---|
| Voc Level: | Low | Net Weight: | 0.95KG |
| Heat Resistance: | Yes | Protection: | UV-resistant |
| Sheen: | High Gloss | Uv Resistance: | Yes |
| Material: | Acrylic | Application Method: | Brush, Roller, Or Spray |
| Adhesion: | Strong | ||
| Highlight: | Automotive Repair Car Paint Topcoat,Manufacture Car Paint Topcoat,Acrylic Aotu Car Paint Topcoat |
||
Product Description
Orange Automotive Basecoat Paint Acrylic Aotu Coat For Car Repair

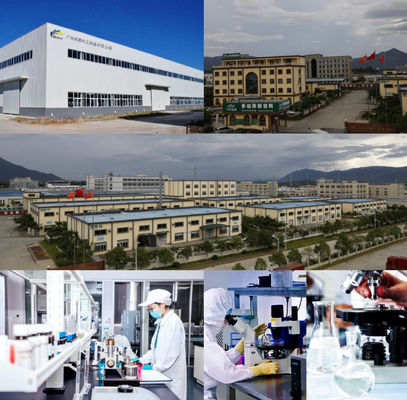

Manufacturer introduction:Welcome to Meklon's automotive coating manufacturing plant!

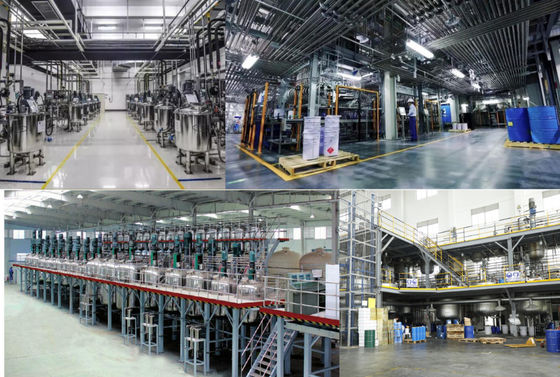

- A modern production base of over 3000 square meters in Guangzhou, China, equipped with internationally leading production equipment and fully automated processes to ensure efficient production and product consistency;
- Strict quality control: professional laboratory+multiple testing processes (full process quality inspection of raw materials/semi-finished products/finished products), only batches that meet the standards are shipped out;
- Green production: exhaust gas and wastewater purification system+environmentally friendly material technology, balancing quality and sustainable development;
- Professional team: Senior R&D, production, and quality inspection personnel oversee the entire process, focusing on providing high-quality automotive paint solutions;
- Flexible Supply: Adapting to the diverse order needs of large car manufacturers/small auto repair companies, it is a trusted choice for global customers.
| Type | 1K Orange-red basecoat color paint | |
|---|---|---|
| Substrates |
Well-sanded,completely dried and good existing finishes as: A. original paint B.old paint firm C.1K or 2K primer |
|
| Surface Cleaning |
Wash by warm soap, remove wax, silicon and other contaminations with degreaser, sanding with P800-P1000, wash with clean water then keep dry, again with degreaser. |
|
| Mixing Ratio | Basecoat | Thinner |
| <15°C | 1K Transparent Blue basecoat color paint | 602 Fast Thinner |
| 15-30°C | 1K Transparent Blue basecoat color paint | 602 Standard Thinner |
| >30°C | 1K Transparent Blue basecoat color paint | 602 Slow Thinner |
| Spray Viscosity | 14-16s to drop off, in 4# viscosity cup at 25°C | |
| Re-Treatment | After Spray, allow 10-20 minutes air-drying time,then spray clear coat at once. | |
| Spray Gun Set Up |
Gravity Feed: 1.2-1.5mm 3-5kg/cm² Gravity Feed: 1.4-1.6mm 3-5kg/cm² |
|
| Spray Technology |
Coats & Thickness: 2-3 coats, total 15-20um. Flash-Off Time: At 25°C, 5-10 minutes between two coats, it depends on temperature and paint film. |
|
| Shelf Life | 2 years in original sealed can, cool and dry place at 25°C | |
| OEM/ODM | As customers' order | |
| Package Size | 1L*12 Tins or 3.75L*4 Tins | |
Note
The substrate must be cleaned and sanded before spray, wet sanding P800-1000 and then dry.
At ambient temperature higher than 30ºC, add appropriate Retarder Solvent
into thinner to avoid blushing. For more details, please refer to technical data sheet of Retarder Solvent.
To avolid problems of mottling or poor adhesion, the metallic paint film should be 15-25um.
